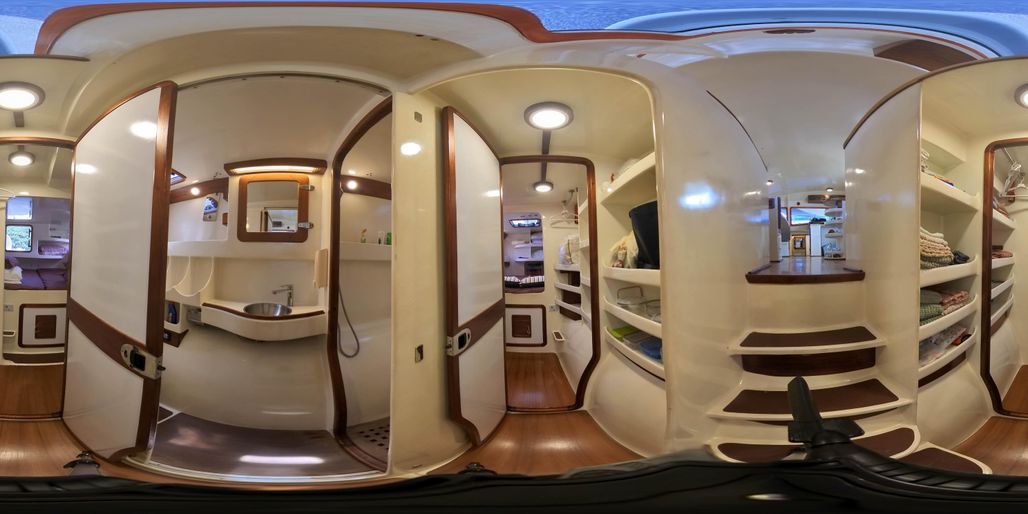

The cat is a four-cabin boat and each hull has a central bathroom. Each double berth has a slatted base and mattresses are latex. The cabins are all air conditioned, have 12 volt and 240 volt outlets plus a USB adapter, good lighting including reading lights and a couple of fans.

Note the port & starboard aft cabin windows looking aft.

Port and Starboard full forward (in each hull) there is also additional space for crew, one berth in each, presently used for stowage.

Drop down tables in aft cockpit and saloon could give two extra double berths (mattress not included).

.

Two plus two transom showers, all with hot and cold water. Two 40 litre water heaters, 750 watt, engine or 240VAC power.

Two SANIMARIN 31 electric flush and macerator. Each head has a 40 litre holding tank.

The galley is large and part of the main saloon area, it has vast refrigeration with 4 drawer fridges and top door freezer. Plenty of countertop with sensible fiddles.

• Double stainless steel sink with draining board, hot and cold water plus salt water, all pressurised
• New 3 burner TECNO gas hob (2023)
• GORENJE SIMPLICITY 240 VAC oven
• Two 160 litre fridges with two drawers each. ISOTHERM BD50F compressor with 240VAC and 12VDC control box
• One 250 litre top loading freezer

• RAYMARINE AXIOM 12 RV - 12" MFD Realvision 3D+600W at helm
• RAYMARINE AXIOM 9 RV - 9" MFD Realvision 3D+600W at the chart table
• RAYMARINE RS130 GPS antenna
• RAYMARINE 18'' digital radome
• RAYMARINE linear drive long type 2 autopilot, ACU-400 control box, EVOLUTION EV-1 sensor core c/w remote control
• 2 x RAYMARINE P70 autopilot control heads (helm and chart table)
• 2 x RAYMARINE i70 Multipurpose displays (helm and chart table)
• RAYMARINE i50/i60 wind vane readout at helm
• RAYMARINE Standard-arm forward wind transducer c/w iTC-5 instrument transducer converter (converts analogue transducer signals used in i70, ST70+ and ST70 instrument systems to SeaTalkng)
• RAYMARINE DST800 depth, speed and temp. transducer
• RAYMARINE E66071 speed and temperature transducer c/w CP300 digital sonar module
• AIRMAR B258 fishfinder c/w CP300 digital sonar module
• RAYMARINE 650 Class B AIS transponder (New May 2023) with AIS Splitter 100
• RAYMARINE Ray 55E VHF radio
• 2 x ICOM IC-M91D h/h water resistant VHF radios
• NASA Meteoman

• The cat's AC system is 240 VAC, waterproof 32 amp stainless steel shore power inlet, 12VDC and 240VAC distribution panels. VICTRON 12/3000/120 amp inverter/charger (Jan 2020).   The yacht's DC system is 12 VDC.
• Batteries; 3 sets of 4 lithium-ion house batteries totaling 540 amps. 3 x VICTRON 12v 110A/H AGM Deep Cycle Battery (Pt & Stbd Engine and Genset).  All batteries new in 2023.
• Charging from...2 x BALMAR 60-150-SR-IG main engine alternators c/w smart regulators,123 Smart GEN 3 - BMS - Kit Inc 4 x cell Balancers 1 x Current Sensor (20123).  FISCHER PANDA generator.  3 x 500 watt solar panels (2023)


  DCM Battery Protect Relay (12Vl500A)

  DCM 5xM8 Busbar (60V/600A)

  DCM Class-T Fuseholder (60V/225 . .400A)

  Cerbo GX Main Controler System for VE. BMS-VE-Piect-USB

  Orion-Tr 12112-18A (220W) Isolated - ORl121222110

  Estimate for 14OOW solar panels on coach roof

  SmartSolar MPPT 100150 Inc Bluetooth - SCC110050210

  Cerbo GX Touch 70 Screen/Monitor 7''- Colour Display inc HDMI and touch control

  12V Protection Module Balmar

  Balmar Alternator Temperature Sensor

6 VETUS BLP 12500,1900 lph bilge pumps with VETUS automatic level switch (4 on hulls and 1 in each engine room.  New engine room bilge pumps 2023.

• YANMAR 4JH5E main engines.  YANMAR SD50 saildrives.  New engine start panels in 2023.. hours closely estimated at 1400.
• FISCHER PANDA PMS 15000NE-DVS #L100/230/50Hz c/w KEB V soft starter for the compressor.  Single phase 11.1 KW, Three phase 13 KW.
• ECHOTEC 690-AML-2, 230VAC, 110 lph watermaker.  Motor and boost pump available in 12VDC.

Fuel:

The yacht has a total of 5 fuel tanks, each serving a specific purpose. The small day tank is dedicated to the generator, while the aft port and starboard tanks are reserved for the main engines. The forward port and starboard tanks, on the other hand, can be easily transferred to either the day tank or the aft tanks. This can be done by adjusting a few valves and using the pumps, which can be monitored through gauges located at the chart table.

• BRUNTONS 18" x 15" Three Blade Varifold Propellers

Single raised helm. Chain, wire and draglinks. New rigid grp/foam helm bimini installed 2023.

• 71 sqm 10.88 oz Dacron fully battened mainsail, 3 slab reefs (March 2019) c/w SUNBRELLA wheat stackpack and lazyjacks
• 110 sqm Dacron tri radial gennaker (2015)  new 5oz UV strip (Feb. 2019)  HARKEN Code Zero Furling System
• 40 sqm Dacron tri radial jib, 9oz UV strip.  HARKEN Unit 3 MKIV Jib Furling System

• Original white painted aluminium rig, mast and boom.
• Stainless steel standing rigging.
• Stainless steel bowsprit.
• Masthead tricolour
• Deck flood

• 3 x HARKEN # 50 two speed st winches
• 1 x HARKEN #46 two speed st winch
• HARKEN deck organisers, deck hardware,
• ANTEL clutches

• GRP bimini structure over helm (2023)
• Heavy duty 316L stainless davits
• Complete cockpit cushion set
• Starboard transom dive ladder c/w sturdy grabs
• Port transom swim ladder
• Hot and cold shower in each transom
• Running lights
• GEBO deck hatches
• Rolly Tasker trampoline (2023)
• Canvas Creation deck shade cover (front, port & Starboard) (2023)
• Approx 90m dock lines (3x15m, 2x12m, 1x20m)
• 3 x inflatable PVC 100 x 30 cm fenders, 6 x Polyform F6 109 x 29 cm, 1 x step fender

• 1700 watt 12VDC QUICK RIDER R5 1712
• 33 kg ROCNA
• 80m of 12mm chain and 60m of 16mm rode
• 20m of 10mm chain and 60m of 16mm rode
• Additional 320m of 12mm polypropylene rode (1 x 200m, 1 x 120m)
• Various others, 10-16mm

• Stem to stern shade covers, new in 2023
• Mainsail stackpack and lazy jacks, new in 2023
• Complete cockpit cushion set

• LALIZAS 12 person ISO life raft
• 10 x HAMMER Premium ISO 100N automatic life jackets
• 2 x kids SPONGEBOB 150N automatic life jackets
• 1 x SECUMAR JUMP 40-70 kg buoyancy aid
• 1 x SECUMAR 70-90 kg standard buoyancy aid
• Life buoy and ring : Standard life buoy 73cm, yellow life buoy with light, inflatable IOR DAN buoy and light, rescue sling, rescue control block 4:1
• Flarepack
• Fire extinguishers : 7x PFE-1 fire extinguisher,1 in each cabin 2 in galley, 1 spare 4x JR-200 fix fire-extinguishers triggered from the chart table, 2 in each engine room
• Comprehensive First Aid Kit
• 5 tethers, 2 HARKEN stretch tethers
• Smoke alarms in all cabins and galley
• Manual bilge pump in each engine room
• Hand held Q-beam spotlight 12VDC 1100 Lm

3.65m AB PROFILE A12 Hypalon RIB c/w wheat coloured tube covers (2019). Rubbing line replaced by CHOLAMARK (2023)

3HP EPROPULSION electric outboard (2023).

ASMARA ALIDA, formerly AOSANGO was built under the almost daily supervision of her owner by Catathai Co. Ltd, Phuket, owner's manual upon request.

The boat was CE certified on 17th Aug 2018 with IMCI / Belgium (Certificate number BCATT001).  Certificate upon request.

She is composite GRP, vacuum bagged closed cell foam core, vinylester resin.

Certification CE : CE certified on 17th Aug 2018 with IMCI / Belgium (Certificate number BCATT001)
